Descripción

About this item

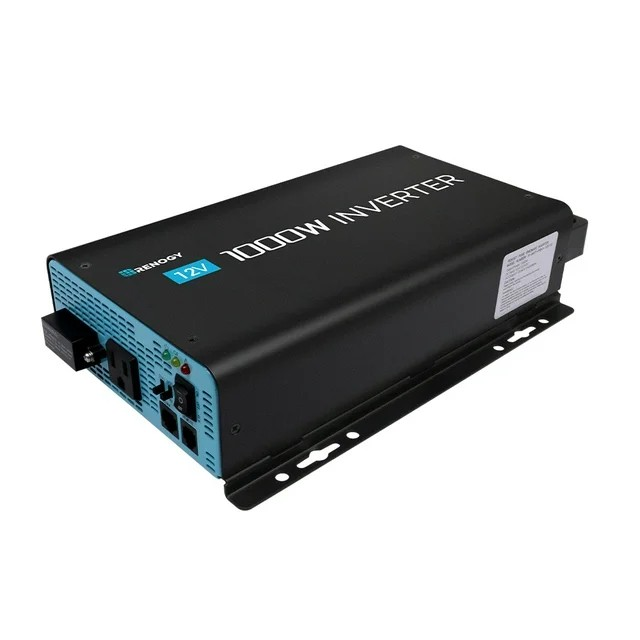

1000W continuous output, 2000W peak surge capacity.
Pure sine wave with conversion efficiency >90%.
Compatible with BT-2 for monitoring via the app or Renogy ONE M1/Core.
Under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
High-efficiency conversion (>90%) minimizes energy loss during operation
Inverter Output Specifications

Continuous Output Power: 1000W

Peak Power Rating: 2000W

Output Voltage: 110VAC ± 10%

Output Frequency: 50 Hz / 60 Hz (adjustable)

AC Output Sockets: 1

Power Output Control: Inverter Power Switch, Remote

Output Waveform: Pure Sine Wave

Nominal Efficiency: > 90%

Total Harmonic Distortion (THD): < 3% Linear Load < 5% Non-linear Load
Mechanical Specifications

Dimensions: 13.4 x 7.6 x 2.8 in

Weight: 7.5 lb

Cooling Fan: Thermally controlled

Operating Temperature Range: -4°F - 158°F / -20°C - 70°C
Input Specifications

Nominal Input Operation Voltage: 11 - 15V DC

Low Battery Alarm: 10V ± 0.5V DC

High Voltage Alarm: 15.5V ± 0.5V DC

Battery Low Shutdown: 10.5V ± 0.5V DC

No Load Current Draw: < 1A
Accessories

Cable: 4AWG

Inverter Remote Control: 16.4 Ft
Certifications

ETL Listed to UL 458 and CSA 22.2 NO 107.1-01: YES

FCC Part 15 class B: YES
Warranty

Material and workmanship warranty: 1 Year
What's in the box

1000W inverter

Inverter Cable

Remote Control
